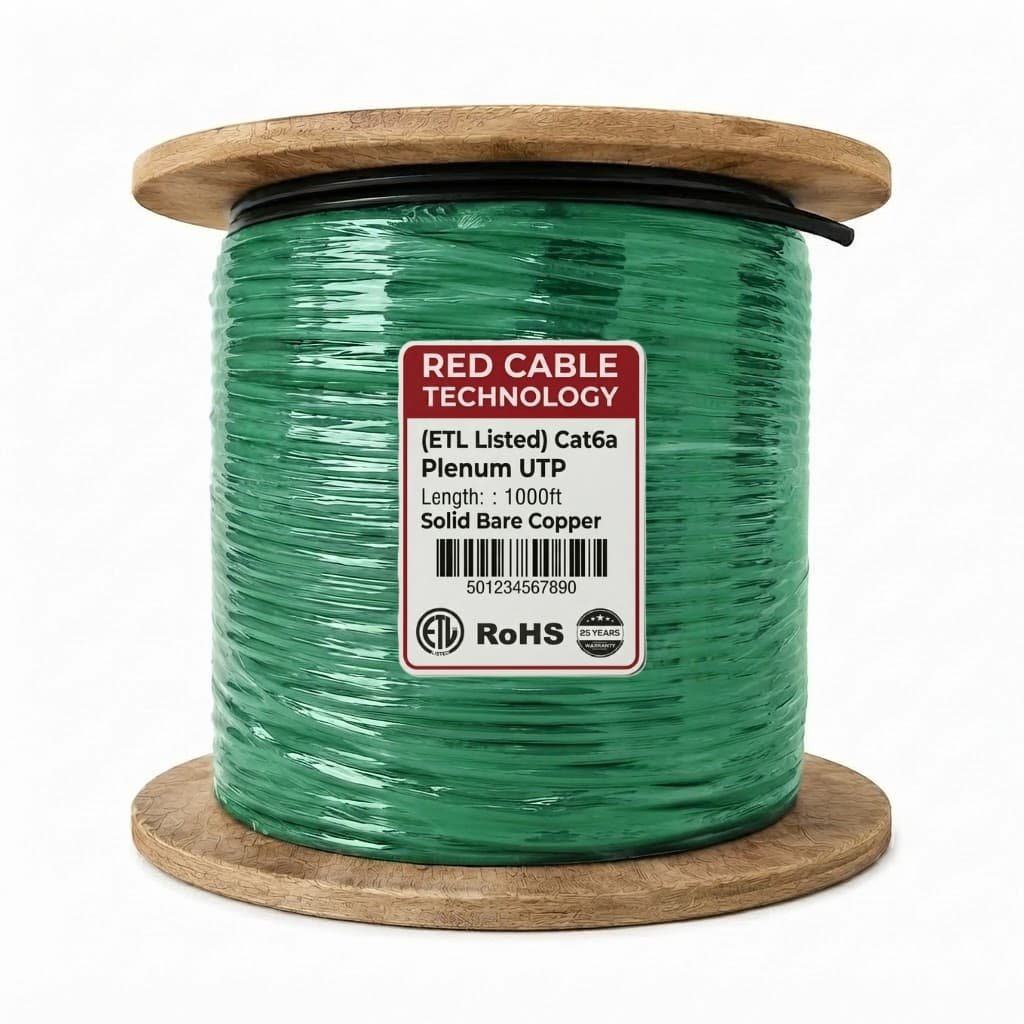

ETL Listed Cat6a Plenum UTP Solid Bare Copper Ethernet Cable from Red Cable Technology is designed for high-performance networking environments requiring reliable 10-Gigabit Ethernet connectivity, enhanced bandwidth, and superior signal integrity. Built with 100% solid bare copper conductors and a CMP-rated plenum jacket, this Cat6a cable supports frequencies up to 750 MHz and delivers consistent performance for enterprise networks, commercial installations, and high-density data applications.
Key Features
- Cable Category: Cat6a
- Cable Type: Plenum UTP
- Listing: ETL Listed
- Conductor Material: 100% Solid Bare Copper
- Conductor Size: 23AWG
- Frequency: 750 MHz
- Ethernet Speed: 10Gb Ethernet
- Jacket Rating: CMP
- Separator: LSZH Crossweb
- Characteristic Impedance: 100Ω
- Cable Outer Diameter: 8.0 ± 0.5 mm
- Voltage Rating: 30V
- Temperature Rating: -45°C to 80°C
- Compliance: RoHS Compliant
- Packaging: 1000 ft Reel
- Construction: UTP (Unshielded Twisted Pair)
Engineered to support frequencies up to 750 MHz, this ETL Listed Cat6a Plenum cable provides the performance and reliability needed for modern structured cabling systems. Its advanced construction helps maintain signal integrity and support high-speed applications including cloud computing, video streaming, VoIP, enterprise communications, and large-scale data transfers.
ETL Listed Cat6a Plenum Premium Solid Bare Copper Construction for Maximum Performance
The ETL Listed Cat6a Plenum cable features 23AWG solid bare copper conductors that provide excellent conductivity and low electrical resistance. Unlike copper-clad aluminum (CCA) alternatives, solid copper provides dependable electrical performance, improved durability, and reliable long-distance data communication.
Each conductor is precision manufactured to maintain consistent electrical characteristics, helping ensure stable connections for demanding network environments. This makes the cable an ideal solution for professional installations where performance, reliability, and compliance are important.
ETL Listed Cat6a Plenum 10-Gigabit Ethernet Performance at 750 MHz
Designed for modern networking systems, this Cat6a cable supports 10-Gigabit Ethernet applications and provides bandwidth capability up to 750 MHz. The higher frequency capability provides additional bandwidth headroom for demanding structured cabling environments and high-performance network infrastructure.
The cable is suitable for applications such as:
- Enterprise networking systems
- Data centers and server rooms
- High-speed workstation connections
- Cloud-based applications
- Video conferencing and IP communications
- Voice over IP (VoIP)
- Network storage systems
- Smart building automation systems
- High-bandwidth data transmission
For customers upgrading their infrastructure, this ETL Listed Cat6a Plenum cable provides the bandwidth capability, construction quality, and installation safety required for modern network environments.
CMP Plenum-Rated Jacket for Enhanced Fire Safety
The CMP-rated plenum jacket is designed for installation in air-handling spaces, including plenum ceilings and other areas where plenum-rated cabling is required. The jacket construction is intended for environments where fire performance and smoke characteristics are important considerations.
This makes the cable an excellent choice for commercial buildings, offices, healthcare facilities, educational institutions, data centers, and other environments requiring CMP plenum-rated Ethernet cable.
For additional information about cable safety and installation requirements, refer to applicable building codes, installation standards, and recognized organizations such as the National Fire Protection Association (NFPA) and Intertek, the organization associated with ETL certification and testing.
UTP Design for Easy Installation and Reliable Connectivity
The Unshielded Twisted Pair (UTP) design provides flexibility, easier handling, and efficient installation while maintaining reliable signal performance.
The internal spline separator helps keep the twisted pairs properly separated and aligned. This construction helps control pair-to-pair interaction and supports improved signal integrity in high-speed networking applications.
The flexible UTP construction allows installers to achieve cleaner cable routing and efficient cable management in both new construction projects and network infrastructure upgrades.
750 MHz Cat6a Plenum Cable for High-Performance Networking
With support for frequencies up to 750 MHz, this Cat6a cable is designed for demanding structured cabling installations where reliable high-speed data transmission is required.
The combination of 23AWG solid bare copper conductors, UTP construction, internal spline separation, and a CMP-rated plenum jacket provides a professional-grade cabling solution for modern network infrastructure.
Its high-frequency capability makes it suitable for installations where additional bandwidth headroom and dependable transmission performance are important.
Ideal Applications for ETL Listed Cat6a Plenum Cable
The ETL Listed Cat6a Plenum UTP Solid Bare Copper Ethernet Cable from Red Cable Technology is recommended for:
- Commercial structured cabling installations
- Enterprise office networks
- Data centers and telecommunications rooms
- Server rooms and network equipment rooms
- Healthcare facilities
- Educational institutions
- High-performance residential networks
- Voice and VoIP communication systems
- Video and IP surveillance applications
- Cloud computing infrastructure
- High-speed workstation connections
- Smart building and automation systems
- High-density networking environments
Cat6a Plenum Cable for Commercial and Enterprise Infrastructure
Modern businesses require network infrastructure capable of handling increasing amounts of data. The ETL Listed Cat6a Plenum UTP Solid Bare Copper cable is designed to provide dependable performance for installations where high-speed connectivity, durable construction, and plenum-rated safety are important.
The combination of 750 MHz frequency support and 10-Gigabit Ethernet capability makes this cable a strong choice for organizations building or upgrading network infrastructure for current and future networking requirements.
Why Choose Red Cable Technology?
Red Cable Technology provides professional-grade networking solutions designed for performance, reliability, and demanding installation environments. Our Ethernet cables are developed for modern structured cabling systems and applications where dependable connectivity and quality construction are essential.
Whether you are building a new network infrastructure or upgrading an existing system, the ETL Listed Cat6a Plenum UTP Solid Bare Copper Ethernet Cable delivers the combination of high-frequency performance, 10Gb Ethernet support, plenum-rated construction, and solid copper conductors required for today’s advanced networking environments.
Explore Red Cable Technology’s ETL Listed Ethernet Cables, Shielded Ethernet Cables, UTP Unshielded Cables, and Cat6a Cables for additional high-performance networking solutions designed for different installation requirements.
