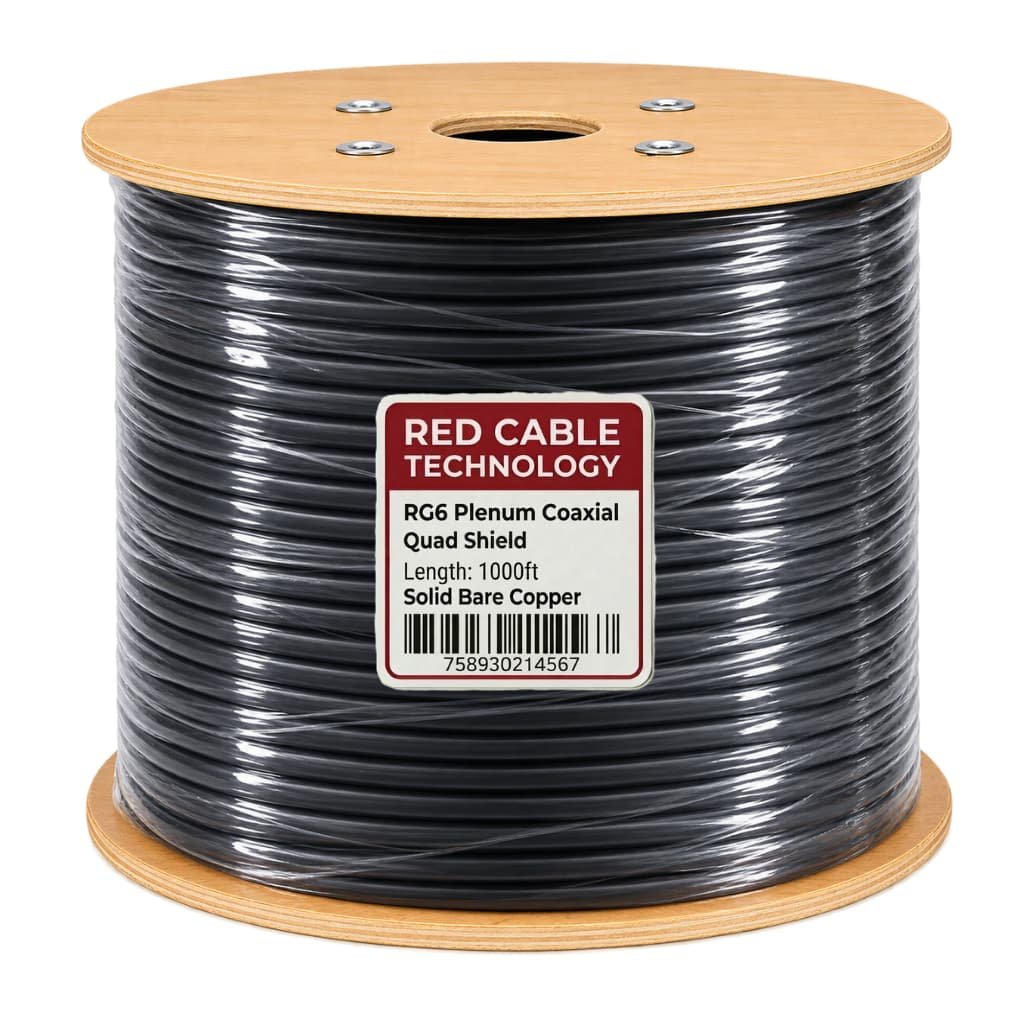

RG6 Plenum Quad Shield Coaxial Cable Solid Bare Copper – 1000 ft

RG6 Plenum Quad Shield Coaxial Cable Solid Bare Copper – 1000 ft from Red Cable Technology is engineered for reliable signal transmission in high-performance video, broadband, satellite, CCTV, and other professional coaxial cable applications. Designed with a solid bare copper conductor, advanced quad-shield construction, and a CMP-rated plenum jacket, this cable provides dependable performance for demanding commercial and professional installations.

Features & Specifications

• Cable Type: RG6 Plenum Quad Shield Coaxial Cable
• Configuration: RG6
• Conductor Type: Solid Bare Copper
• Shielding: Quad Shield
• Shield Construction: Dual Foil + Dual Braid
• Jacket Rating: CMP / Plenum Rated
• Installation Rating: Plenum
• Frequency Capability: Up to 3 GHz
• Cable Length: 1000 ft
• Cable Construction: Coaxial
• Signal Applications: Video, Broadband, Satellite, CCTV, Audio/Video
• Applications: Commercial, Professional, Structured Cabling
• Jacket: Plenum-Rated Flame-Retardant Construction
• Suitable For: Approved In-Wall and Plenum-Space Installations Where CMP Cable Is Required

The RG6 Plenum Quad Shield design combines high-frequency signal capability with enhanced protection against electromagnetic and radio-frequency interference. Its plenum-rated construction makes it suitable for approved installations where CMP-rated cable is required, including certain air-handling and plenum spaces.

With a 1000 ft length, this cable provides installers with an efficient solution for larger structured cabling projects, commercial video distribution systems, broadband networks, security installations, and other applications requiring reliable RG6 coaxial cable.

RG6 Plenum Quad Shield Performance

The RG6 Plenum Quad Shield Coaxial Cable is designed to provide stable and consistent signal transmission across a wide range of professional video and broadband applications.

Its RG6 construction provides a practical combination of conductor size, shielding, and high-frequency performance for applications where dependable coaxial connectivity is important. The solid bare copper conductor provides excellent electrical conductivity and supports consistent signal transmission across properly designed cable runs.

The quad-shield construction adds multiple layers of protection around the signal-carrying core. This can help reduce the effects of external electromagnetic and radio-frequency interference, particularly in installations where coaxial cable may be routed near electrical equipment and other potential sources of interference.

RG6 Plenum Quad Shield Solid Bare Copper Conductor

The RG6 Plenum Quad Shield cable uses a solid bare copper conductor designed for reliable electrical conductivity and consistent signal transmission.

Solid copper provides an efficient conductive path for high-frequency signals and is commonly used in professional coaxial cable applications where dependable electrical performance is important.

The solid conductor also provides a stable construction for permanent installations and structured cabling systems. Proper cable length, connectors, termination quality, and installation practices should always be considered when designing a coaxial system.

Advanced Quad Shield Construction

One of the key characteristics of this RG6 Plenum Quad Shield Coaxial Cable is its four-layer shielding construction.

The cable uses dual aluminum foil layers and dual braided shields to provide enhanced protection against external interference. This quad-shield arrangement creates multiple protective layers around the dielectric and center conductor.

The additional shielding is particularly useful in environments where coaxial cables may be exposed to electrical equipment, power wiring, lighting systems, HVAC equipment, or other potential sources of EMI and RFI.

The quad-shield design helps maintain signal integrity by reducing unwanted interference entering the cable.

RG6 Plenum Quad Shield CMP-Rated Plenum Jacket

The cable features a CMP-rated plenum jacket for installations where plenum-rated coaxial cable is required.

Plenum-rated cable is designed for use in approved plenum spaces and other locations where applicable building and electrical codes require a CMP-rated cable construction. The jacket is designed with fire-performance characteristics appropriate for these types of installations.

Before installation, always confirm that the cable’s actual markings and certification meet the requirements of the specific installation location and the applicable authority having jurisdiction.

RG6 Plenum Quad Shield Wide Frequency Compatibility

The RG6 Plenum Quad Shield Coaxial Cable supports frequencies up to 3 GHz, making it suitable for a variety of high-frequency video, broadband, and communication applications.

Its high-frequency capability makes it appropriate for systems such as:

• HDTV distribution
• Satellite TV
• Cable television
• Broadband connectivity
• CCTV and security video
• Video distribution
• Multimedia installations
• Professional AV systems

Actual transmission performance depends on cable length, connectors, termination quality, equipment specifications, installation conditions, and system design.

Get Dependability and Consistent Performance with RG6 Plenum Quad Shield

The RG6 Plenum Quad Shield cable is designed for professional-grade installations where signal stability, interference protection, and plenum-rated construction are important.

Its combination of solid bare copper construction, quad shielding, and CMP-rated jacket provides a practical solution for demanding coaxial installations.

The following characteristics make this cable suitable for professional projects:

• Solid bare copper conductor provides reliable electrical conductivity.
• Quad-shield construction provides multiple layers of protection against EMI and RFI.
• CMP-rated plenum jacket supports approved plenum-space installations where the required rating applies.
• Up to 3 GHz frequency capability supports a wide range of high-frequency video and broadband applications.
• 1000 ft length provides substantial cable for larger installation projects.
• RG6 construction makes it suitable for compatible video, broadband, satellite, CCTV, and communication systems.

Distinctive Features and Technical Excellence

The RG6 Plenum Quad Shield Coaxial Cable combines high-frequency capability with a robust shielding design and plenum-rated construction.

Enhanced Interference Protection

The quad-shield construction uses two foil layers and two braided shield layers to provide enhanced protection against external electromagnetic and radio-frequency interference.

This construction can be especially beneficial in commercial environments containing electrical equipment, power systems, lighting, HVAC equipment, and other potential sources of interference.

RG6 Plenum Quad Shield Reliable Copper Construction

The solid bare copper center conductor provides a highly conductive path for signal transmission. Combined with the cable’s dielectric and shielding layers, it provides a dependable construction for permanent coaxial installations.

Plenum-Rated Construction

The CMP-rated jacket makes this cable suitable for approved plenum applications where the required cable rating is CMP.

High-Frequency Signal Capability

With support for frequencies up to 3 GHz, this RG6 cable is designed for high-frequency applications including satellite, broadband, HDTV, CCTV, and professional video distribution.

1000 ft Installation Length

The 1000 ft length provides installers with a practical continuous cable supply for larger projects. A long continuous length can help simplify project planning and reduce unnecessary splices when appropriately designed cable runs are used.

Ideal Use Scenarios and Project Integration

The RG6 Plenum Quad Shield Coaxial Cable is designed for professional and commercial installations requiring reliable coaxial signal transmission and plenum-rated construction.

Common applications include:

• Satellite TV distribution systems
• Cable TV distribution
• Broadband internet and modem connections
• HDTV video distribution
• CCTV security systems
• Surveillance camera installations
• Professional audio/video systems
• Commercial video distribution
• Multimedia installations
• Broadcast-related installations
• Structured cabling systems
• Corporate buildings
• Educational institutions
• Commercial facilities
• Data and communication infrastructure
• Approved plenum-space installations

RG6 Plenum Quad Shield for Commercial Buildings

Commercial buildings often require coaxial cabling to pass through walls, ceilings, cable pathways, and other building spaces.

The RG6 Plenum Quad Shield provides a combination of signal performance, interference protection, and CMP-rated construction for approved commercial installations.

It can be used for compatible video, broadband, security, satellite, and communication systems where RG6 coaxial cable and the appropriate plenum rating are required.

The quad-shield construction can be particularly useful in commercial environments where cables may be installed near electrical equipment and other sources of electromagnetic interference.

RG6 Plenum Quad Shield for Broadband Applications

Broadband systems require dependable signal transmission across properly designed cable runs.

The RG6 Plenum Quad Shield Coaxial Cable combines a solid bare copper center conductor with multiple shielding layers to provide a stable coaxial transmission path.

Its frequency capability up to 3 GHz makes it suitable for various compatible broadband and high-frequency communication applications.

Actual broadband performance depends on the connected equipment, network architecture, cable distance, connectors, signal levels, and installation quality.

RG6 Plenum Quad Shield for Satellite and TV Distribution

RG6 coaxial cable is widely used in compatible satellite and television distribution systems.

The quad-shield design provides additional protection against external interference, while the solid bare copper conductor provides reliable conductivity for signal transmission.

This makes the cable a practical option for professional satellite, HDTV, cable television, and video distribution installations where a CMP-rated cable is required.

RG6 Plenum Quad Shield for CCTV and Security Systems

The RG6 Plenum Quad Shield cable can also be used in compatible CCTV and security video applications.

The multiple shielding layers help protect the signal from external interference, which can be important in commercial security installations containing electrical equipment and other potential interference sources.

For any specific surveillance system, installers should verify that the cable type, connectors, transmission requirements, and equipment are compatible with the intended application.

In-Wall and Plenum Installation

The RG6 Plenum Quad Shield Coaxial Cable is designed for approved installations where CMP-rated cable is required.

Its plenum-rated jacket makes it appropriate for applicable plenum spaces and approved in-wall pathways when the installation requirements call for CMP cable.

Riser-rated or general-purpose cable should not be substituted for CMP cable where a plenum rating is specifically required.

Always verify the actual cable marking and applicable installation requirements before routing the cable through air-handling spaces, ceilings, walls, or other building pathways.

1000 ft RG6 Plenum Quad Shield Coaxial Cable

This product is supplied in a 1000 ft length, making it suitable for larger residential, commercial, and professional installation projects.

The long continuous length allows installers to plan cable runs efficiently and can reduce the need for unnecessary connections or splices.

The 1000 ft length is particularly useful for projects involving multiple video, broadband, satellite, CCTV, or communication cable runs.

Installation Considerations

For best performance, the RG6 Plenum Quad Shield Coaxial Cable should be installed using compatible connectors and proper termination methods.

During installation:

• Avoid excessive bending or crushing of the coaxial cable.
• Maintain the recommended bend radius.
• Avoid pulling the cable beyond its appropriate pulling tension.
• Use connectors designed for the specific RG6 cable construction.
• Ensure shield layers are properly terminated.
• Keep cable routing organized and separated from potential interference sources where practical.
• Verify the cable marking and rating before installation in plenum spaces.
• Follow applicable electrical, fire, building, and local code requirements.

Proper installation is important for maintaining the cable’s intended electrical and mechanical performance.

Industry Standards & Installation Requirements

The RG6 Plenum Quad Shield Coaxial Cable should be installed according to the requirements applicable to the specific project, building, cable pathway, and installation environment.

CMP/plenum-rated cable is intended for applications where the applicable installation requirements call for plenum-rated construction. The actual cable jacket marking, certification, and listing should always be verified before installation.

For electrical installation requirements, installers should consult the applicable edition of the National Electrical Code (NEC) and local electrical and building codes.

Requirements can vary depending on the building type, installation pathway, jurisdiction, and authority having jurisdiction. Always confirm that the cable’s actual markings and ratings meet the requirements of the intended installation.

Why Choose Red Cable Technology?

Red Cable Technology provides professional cabling solutions for networking, coaxial, audio, fire alarm, and other low-voltage applications.

Our products are designed with practical installation requirements in mind, providing clearly defined specifications and reliable construction for residential, commercial, and professional projects.

The RG6 Plenum Quad Shield Coaxial Cable Solid Bare Copper – 1000 ft provides a professional coaxial cable solution combining solid bare copper construction, quad-shield protection, high-frequency capability, and CMP-rated plenum construction.

For networking applications, Red Cable Technology also offers Cat6 Cables and Cat6a Cables for structured network cabling projects.

RG6 Plenum Quad Shield Coaxial Cable FAQs

What is RG6 Plenum Quad Shield Coaxial Cable?

RG6 Plenum Quad Shield Coaxial Cable is a high-frequency coaxial cable featuring a solid bare copper center conductor, four layers of shielding, and a CMP-rated plenum jacket. It is designed for compatible video, broadband, satellite, CCTV, and professional communication applications.

What does RG6 mean?

RG6 is a common coaxial cable configuration used for a variety of video, broadband, television, satellite, and communication applications. Its construction is designed for high-frequency signal transmission.

What does Quad Shield mean?

Quad Shield means the cable has four shielding layers. This product uses two foil layers and two braided shield layers to provide enhanced protection against external electromagnetic and radio-frequency interference.

Is this RG6 cable shielded?

Yes. This product uses quad-shield construction, consisting of two foil layers and two braided shield layers.

Is the conductor solid copper?

Yes. The cable uses a solid bare copper conductor.

What type of jacket does this cable have?

The cable has a CMP-rated plenum jacket designed for approved plenum installations where CMP-rated cable is required.

Is this cable suitable for plenum spaces?

Yes, the product is specified as CMP/plenum-rated. However, installers should always verify the actual cable marking and listing and confirm that it meets the requirements of the specific installation.

Is this cable suitable for riser spaces?

The product is specifically described as CMP/plenum-rated. Whether it is appropriate for a particular riser pathway depends on the installation requirements and applicable code. Always verify the cable’s actual rating and the requirements of the installation.

What frequency does this RG6 cable support?

The supplied product specifications identify a frequency capability of up to 3 GHz.

What can RG6 Plenum Quad Shield cable be used for?

It can be used for compatible applications such as:

• Satellite TV
• Cable TV
• HDTV distribution
• Broadband
• CCTV
• Security video
• Audio/video systems
• Commercial video distribution
• Professional communication systems

Can this cable be used for CCTV?

Yes. It can be used in compatible CCTV and security video installations where RG6 coaxial cable is appropriate.

Can this cable be used for satellite TV?

Yes. The cable is suitable for compatible satellite TV distribution applications.

Can this cable be used for broadband internet?

Yes. It can be used for compatible broadband and modem applications. Actual performance depends on the equipment, cable distance, connectors, signal requirements, and network design.

What is the advantage of solid bare copper?

A solid bare copper conductor provides reliable electrical conductivity and a stable signal path for compatible high-frequency coaxial applications.

What is the advantage of quad shielding?

Quad shielding provides multiple layers of protection against external interference. This can be beneficial in environments where coaxial cable is exposed to electrical equipment, power wiring, lighting, HVAC equipment, and other potential EMI or RFI sources.

What is the cable length?

This product is supplied in a 1000 ft length.

Is this cable suitable for commercial installations?

Yes. The cable is designed for professional and commercial applications where RG6 coaxial cable with CMP/plenum-rated construction is required.

Can this cable be installed in ceilings?

It can be installed in applicable ceiling or plenum spaces when the installation requires and permits CMP-rated cable. Always verify the cable marking and local installation requirements before installation.

Can this cable be installed inside walls?

Yes, it can be used for approved in-wall installations where the cable’s CMP rating and construction meet the applicable requirements.

Does quad shielding improve signal quality?

Quad shielding primarily provides increased protection against external electromagnetic and radio-frequency interference. Signal quality also depends on cable length, connectors, termination, equipment, signal levels, and installation practices.

Is this cable suitable for HDTV?

Yes. The cable’s RG6 construction and frequency capability up to 3 GHz make it suitable for compatible HDTV and high-frequency video distribution applications.

Is this cable suitable for professional installations?

Yes. Its solid bare copper conductor, quad-shield construction, CMP-rated jacket, and 1000 ft length make it suitable for many professional and commercial coaxial installation projects.

Why choose RG6 Plenum Quad Shield instead of standard RG6?

The RG6 Plenum Quad Shield provides two key advantages for appropriate installations: quad-shield protection for enhanced interference resistance and CMP/plenum-rated construction for locations where plenum-rated cable is required. The correct cable should always be selected based on the specific installation requirements.
