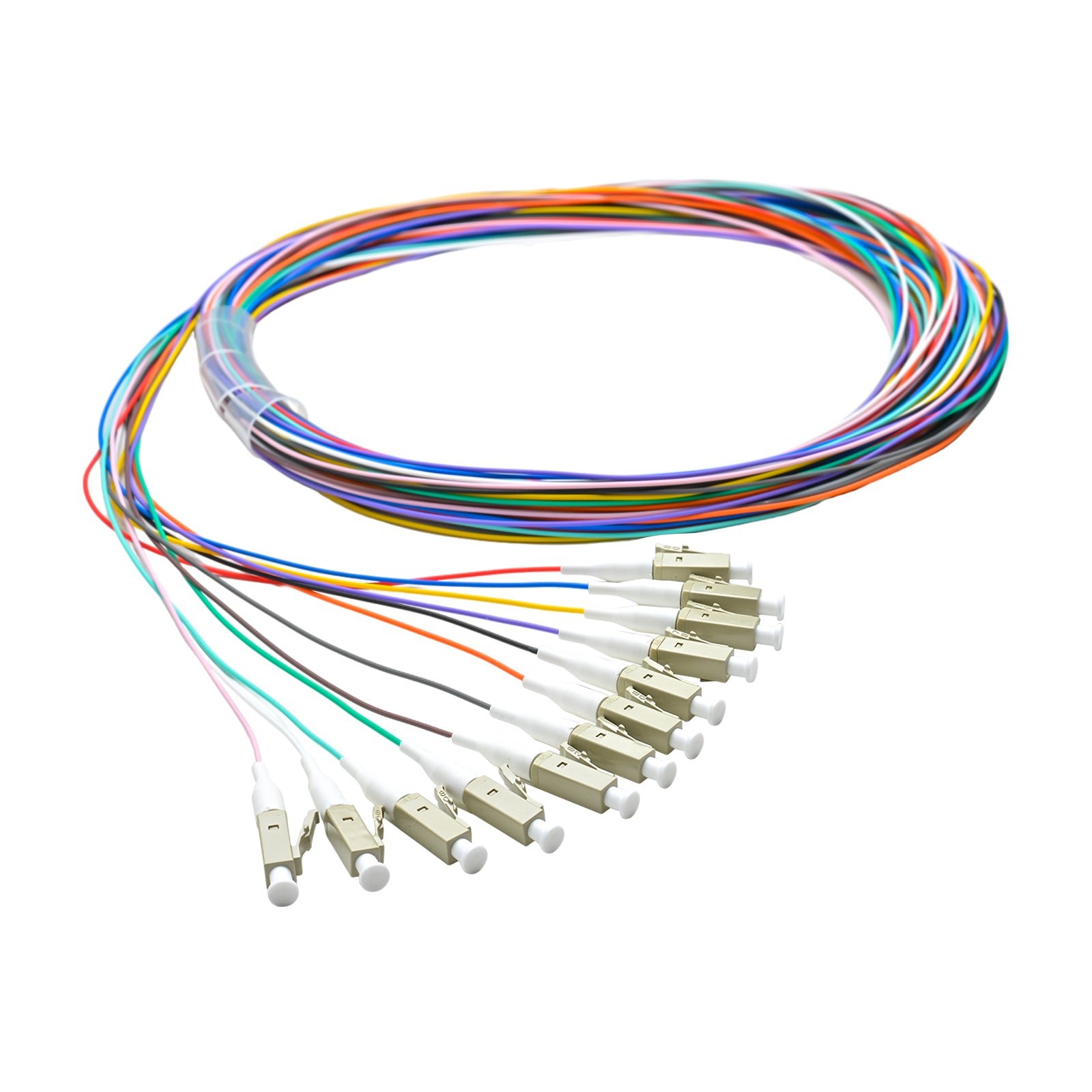

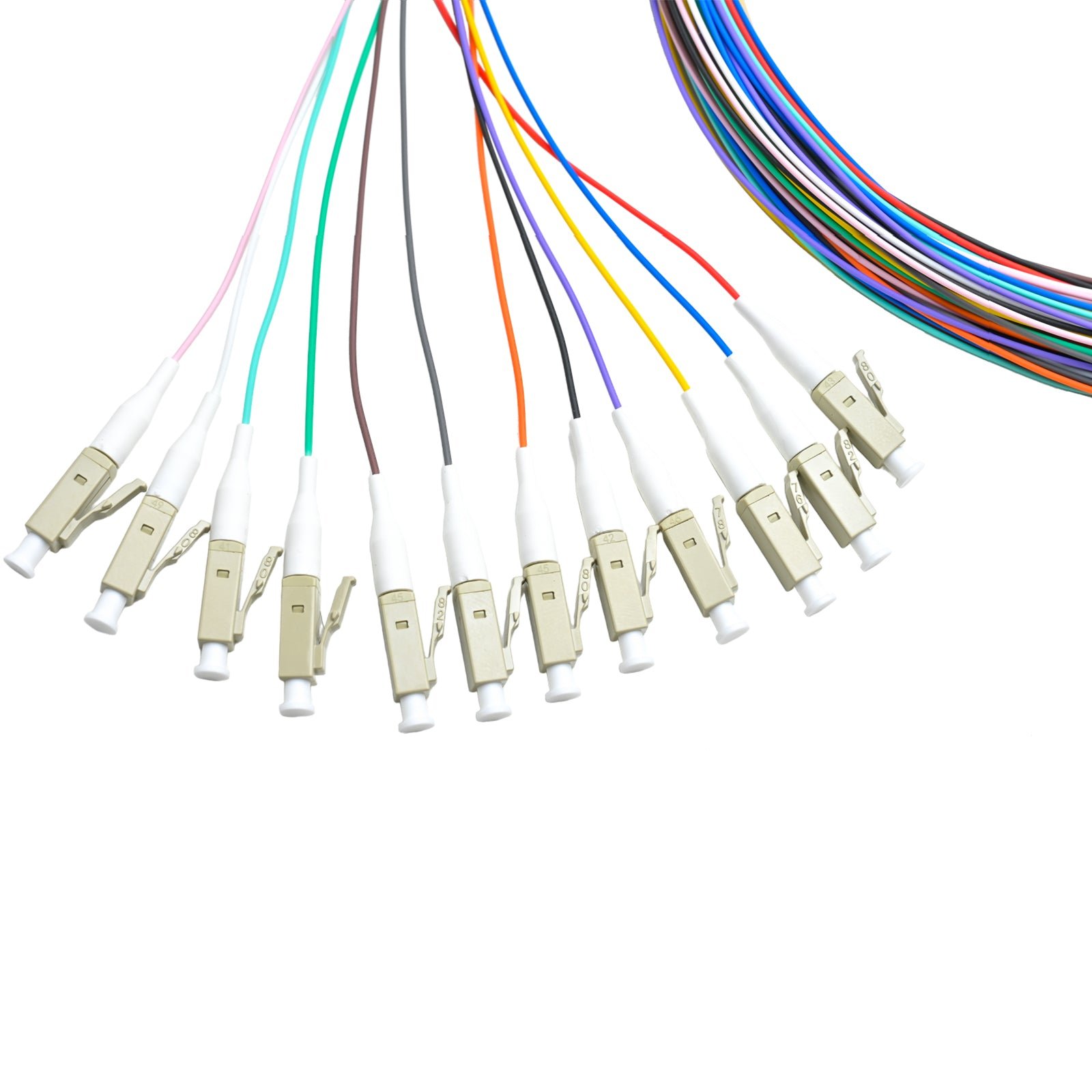

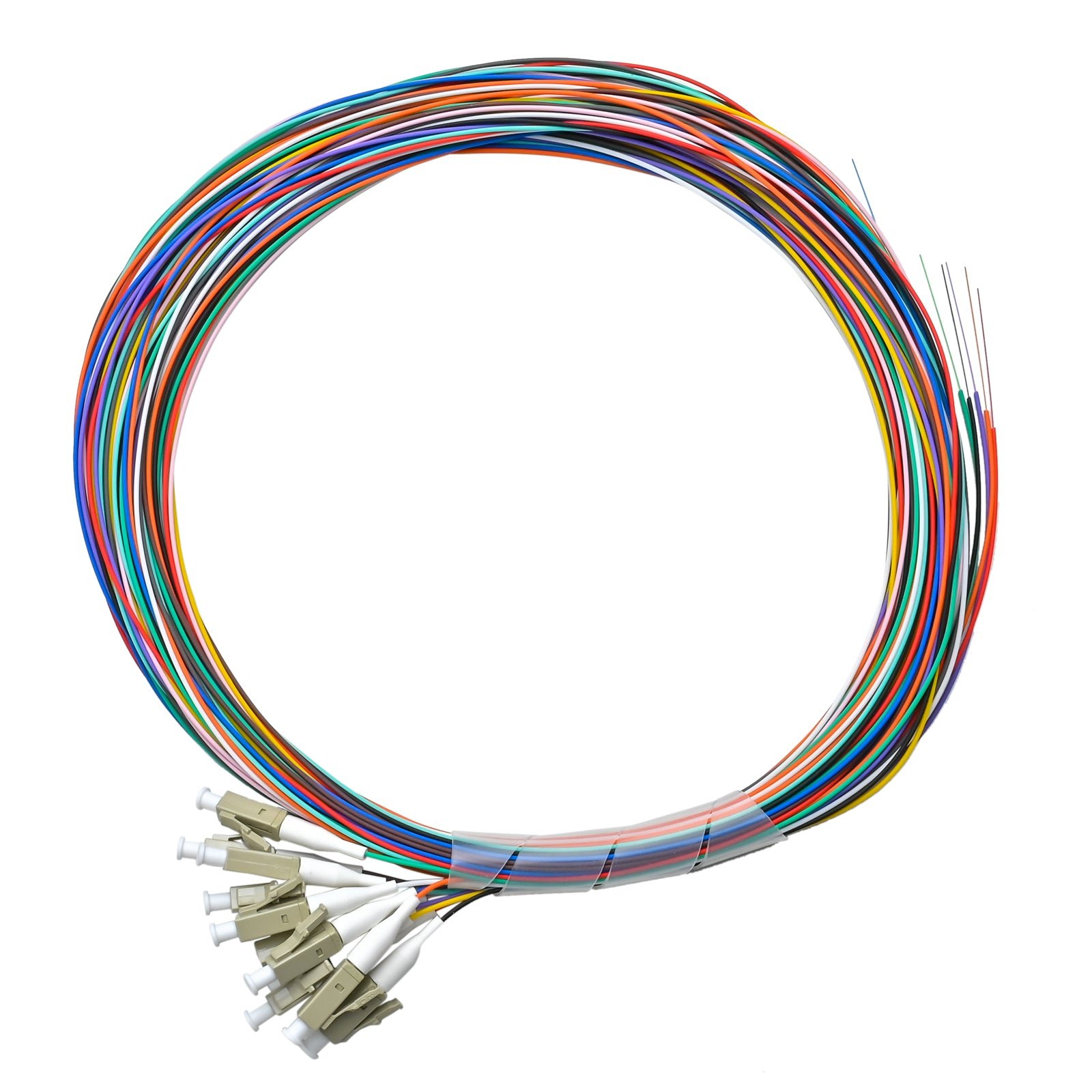

LC/UPC Fiber Pigtail (12 Colors, OM4, 0.9mm OFNR, 3M, Semitight) from Red Cable Technology (RCT) — a 3-meter OM4 multimode pigtail for fusion or mechanical splicing, in a 0.9mm OFNR semitight construction for ODFs, fiber terminal boxes, and distribution boxes — in a 12-color set for simple circuit identification.
Features & Specs:
- LC/UPC, OM4 multimode, 0.9mm OFNR, 3M, semitight — supplied in 12 colors
- Terminates fiber cables via fusion or mechanical splicing; high-quality pigtails plus correct splicing practices give the best performance possible
- Found in fiber management equipment: ODF, fiber terminal box, and distribution box
- LC connector: 1.25mm ferrule (about half the size of SC), small form factor (“little connector”), designed to join LC fibers where a connection or disconnection is required
- UPC connectors are polished with no angle (a slight curvature for better core alignment); UPC blue, APC green
- OM4: aqua jacket, 50µm core — 10 Gigabit Ethernet to 550 meters, 100 Gigabit Ethernet to 150 meters; LOMMF is designed for use with 850 nm VCSELs
- Strippable tight buffer: gap not visible under 100x magnification, no loose powder/liquid interstitial material, and at least 10 cm removable with one circular cut
